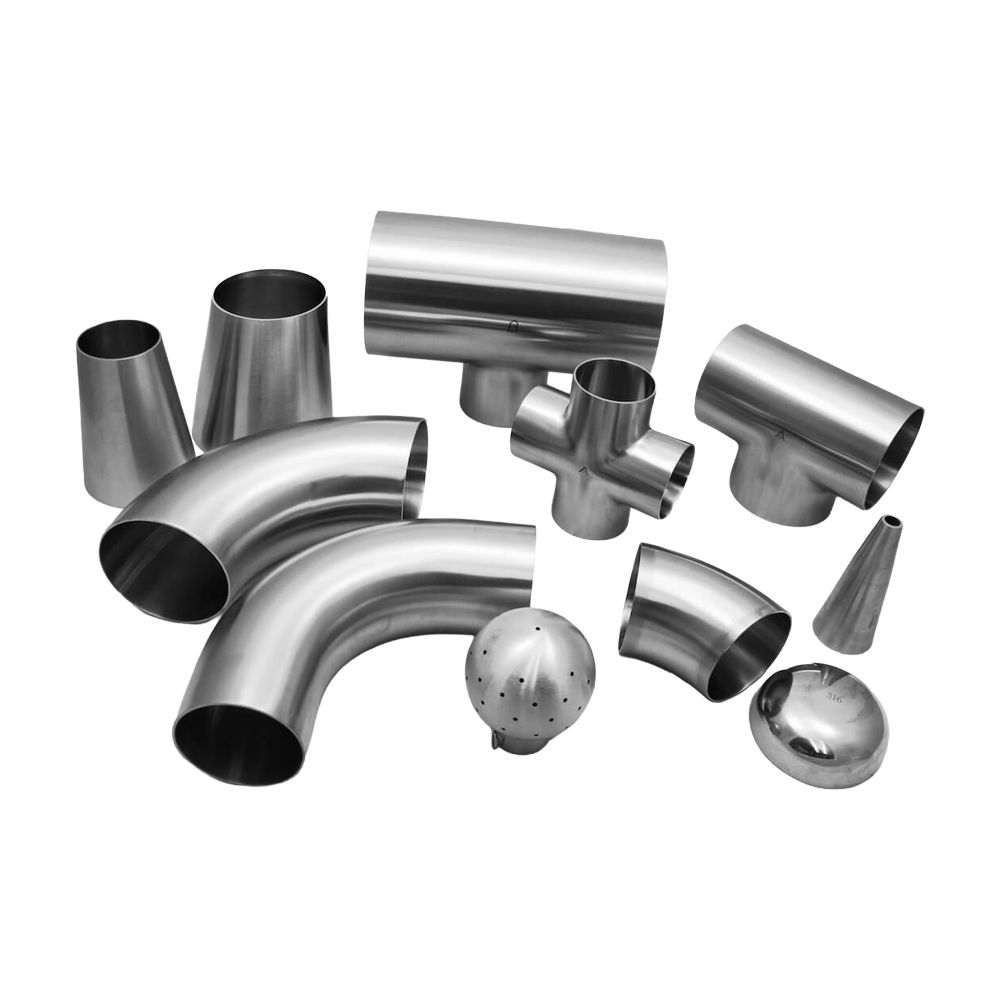

Stainless Steel Tube Fittings
Stainless steel sanitary fittings are essential components in hygienic piping and process systems where cleanliness, corrosion resistance, durability, and reliable performance are critical. Designed for demanding operating environments, sanitary fittings provide secure connections between stainless steel tubing and piping while helping maintain smooth, cleanable process surfaces.
Unlike conventional industrial pipe fittings, sanitary fittings are designed with hygienic processing requirements in mind. Their smooth surfaces and carefully engineered geometries help minimize the areas where product residue, bacteria, or contaminants can accumulate.
Key Benefits
Hygienic and Easy to Clean — Smooth internal surfaces and sanitary designs help minimize product buildup, contamination, and areas where bacteria or residue can accumulate. Suitable designs can support CIP and other cleaning processes.
Durable Construction — Stainless steel provides strength and durability for demanding processing environments, including repeated use, temperature changes, cleaning cycles, and routine maintenance.
Customizable Options — Custom dimensions, configurations, fabricated assemblies, and specialized connections can accommodate unique equipment layouts.
High-Quality Surface Finishes — Polished, passivated, and electropolished finishes can be selected for applications requiring enhanced surface quality and cleanability.
Suitable for Demanding Environments — Designed to meet the performance and cleanliness requirements of applications ranging from general food processing to pharmaceutical and high-purity systems.
Minimal Product Retention — Hygienic geometries can help reduce areas where liquids or processed materials can become trapped, supporting efficient drainage.
Typical Applications
Food & Beverage Processing
Pharmaceutical & Biotechnology
Chemical Processing
Water & Wastewater Systems
Industrial Manufacturing
Dairy Processing
Process and Utility Systems
HVAC & Cooling Systems
Energy & Utility Systems
Architectural Applications
Compressed Air Systems
Cooling Water Systems
High-Purity Water Systems
Construction & Materials
Material: 304/304L and 316/316L stainless steel
End Connection: Weld ends, tri-clamp, bevel seat, I-line, Q-line, John Perry
Surface Finish: Polished 30RA ID/OD, 20RA MP ID, 15RA EP ID
Outside Diameter Size: 1/4 to 6 inch
Wall Thicknesses: .035, .049, .065, .83, .109
Specification: ASTM A269/A270, 3-A, ASME BPE
Performance Specifications
Maximum Operating Temperature: Up to 1,500°F (815°C), depending on configuration
Tensile Strength: Up to 70 ksi (517 MPa), depending on configuration
Yield Strength: Up to 30 ksi (207 MPa), depending on configuration
Dimensional Tolerance: Depends on configuration
Quality & Compliance
Stainless steel fittings are produced using controlled manufacturing processes to ensure consistent material integrity, dimensional accuracy, weld quality, and surface finish. Quality controls can include material traceability, dimensional inspection, mechanical testing, nondestructive examination, pressure testing, and verification against applicable ASTM and ASME specifications. High-purity fittings can be supplied to applicable 3-A and ASME BPE requirements, with material test reports, certificates of conformance, inspection records, and traceability documentation available according to project requirements.
