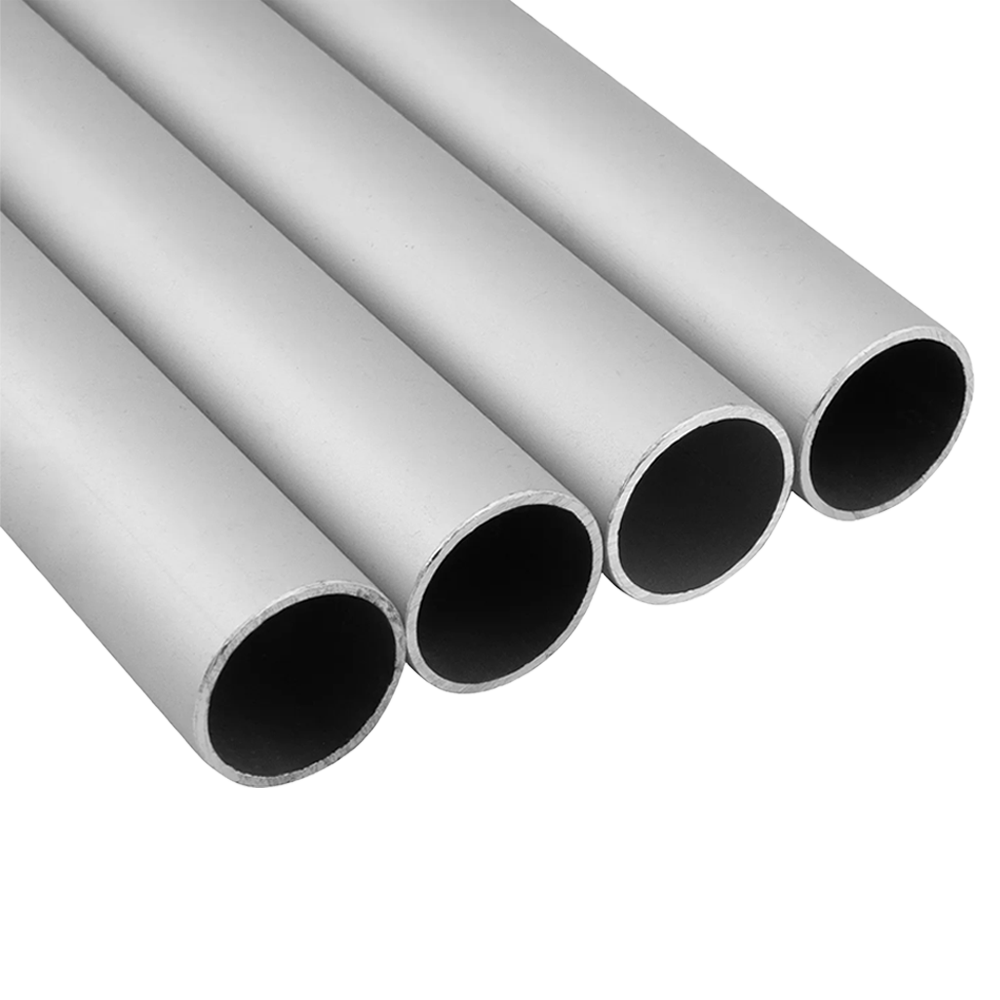

Stainless Steel Pipe
Stainless steel SCH10 pipe is a lightweight, corrosion-resistant piping solution designed for applications requiring dependable fluid and gas conveyance without the additional wall thickness of heavier schedules. Manufactured in common stainless steel grades such as 304/304L and 316/316L, Schedule 10 pipe provides an effective balance of corrosion resistance, strength, flow capacity, weight, and installation efficiency.
Stainless steel pipe dimensions are standardized under ASME B36.19M, which covers welded and seamless wrought stainless steel pipe for piping systems operating at high or low temperatures and pressures.
Key Benefits
Lightweight Construction — Schedule 10 features a relatively thin wall, reducing overall pipe weight and making handling, transportation, and installation easier.
Reduced Material Usage — The thinner wall can reduce the amount of stainless steel required compared with heavier pipe schedules, potentially lowering material weight and associated handling costs.
High Flow Capacity — The thinner wall also provides a larger internal diameter than heavier schedules of the same nominal size, allowing efficient fluid flow.
Low Maintenance — Stainless steel requires relatively little maintenance when correctly selected for the service environment, helping reduce ongoing maintenance.
Excellent Temperature Performance — Stainless steel maintains useful properties across a broad temperature range, making it suitable for hot and cold applications.
Easy Installation — Reduced weight compared with heavier schedules can make Schedule 10 pipe easier to cut, position, support, and install.
Typical Applications
Food & Beverage Processing
Pharmaceutical & Biotechnology
Chemical Processing
Water & Wastewater Systems
Industrial Manufacturing
Dairy Processing
Process and Utility Systems
HVAC & Cooling Systems
Energy & Utility Systems
Architectural Applications
Compressed Air Systems
Cooling Water Systems
High-Purity Water Systems
Construction & Materials
Materials: 304/304L and 316/316L stainless steel
Formation: Welded or seamless
Surface Finishes: Mill finish, polished ID/OD
Outside Diameter Sizes: 1/2 to 12 inch
Wall Thicknesses: Schedule 10
Specification: ASME B36.19M
Performance Specifications
Maximum Operating Temperature: Up to 1,700°F (925°C), depending on configuration
Tensile Strength: Up to 70ksi (485 MPa), depending on configuration
Yield Strength: Up to 25 ksi (170 MPa), depending on configuration
Dimensional Tolerance: Depends on configuration
Quality & Compliance
Stainless Steel Schedule 10 pipe is manufactured using certified 304/304L and 316/316L stainless steel to applicable ASTM and ASME material and dimensional requirements, including ASME B36.19M. Material traceability, dimensional inspection, mechanical testing, weld inspection, and certification documentation can be provided to support quality assurance, project specifications, and industry-specific requirements.
