Stainless Steel Pipe Fittings

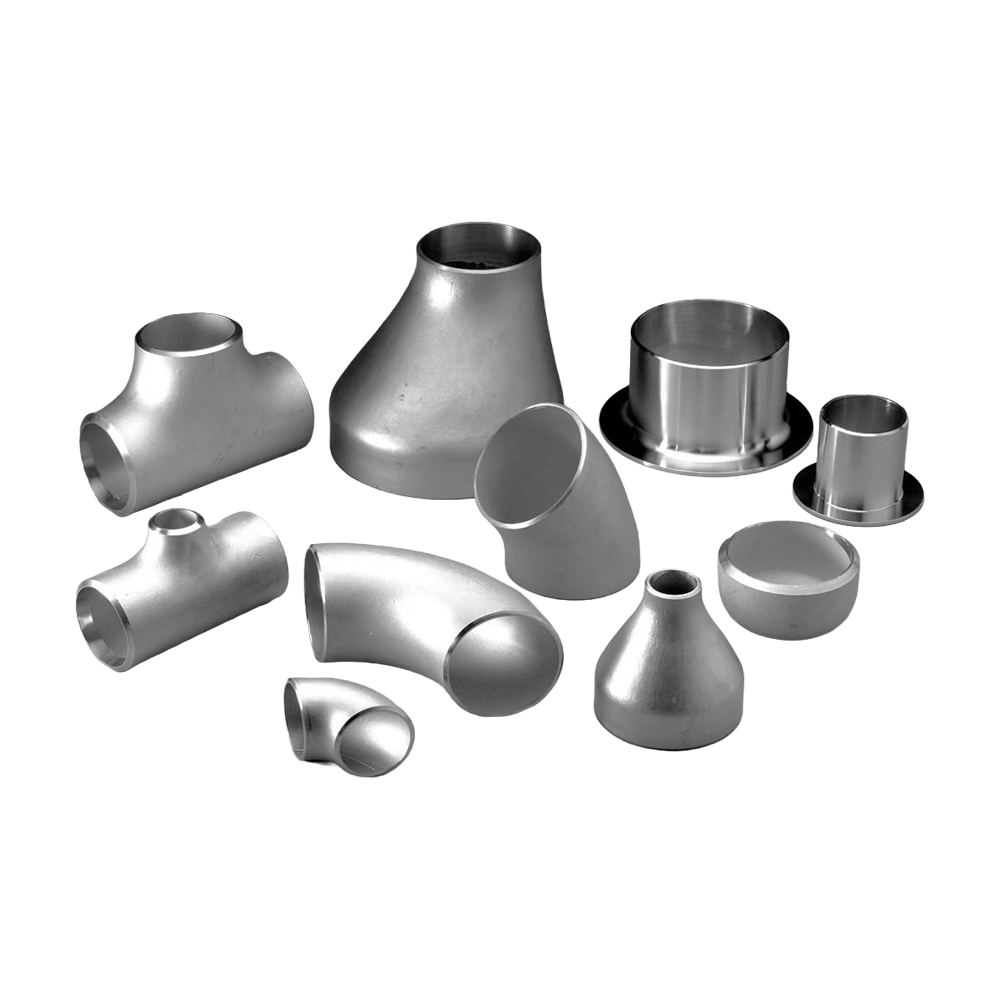

Schedule 10 stainless steel pipe fittings are lightweight, corrosion-resistant components designed to connect and configure Schedule 10 stainless steel piping systems. Available in common grades such as 304/304L and 316/316L, these fittings provide an effective combination of durability, flow capacity, corrosion resistance, and reduced material weight.
Commonly used in industrial, commercial, process, food and beverage, pharmaceutical, chemical, water, utility, and other applications where stainless steel construction is required without the additional wall thickness associated with heavier pipe schedules.
Key Benefits
Lightweight Construction — Thinner Schedule 10 walls reduce overall fitting weight, making components easier to handle, transport, and install.
Durable Performance — Stainless steel provides excellent mechanical strength and durability for demanding industrial and process applications.
High Flow Capacity — The relatively thin wall allows for a larger internal flow area compared with heavier schedules of the same nominal size.
Dimensional Compatibility — Designed to integrate with compatible Schedule 10 stainless steel pipe, valves, flanges, and other piping components.
Excellent Weldability — Schedule 10 stainless steel fittings are well suited to welded piping systems when appropriate welding procedures are used.
Easy Installation — Reduced weight can simplify handling, positioning, fabrication, and installation compared with heavier-wall fittings.
Low Maintenance — Stainless steel's corrosion resistance and durable construction can help reduce maintenance and replacement requirements.
Typical Applications
Food & Beverage Processing
Pharmaceutical & Biotechnology
Chemical Processing
Water & Wastewater Systems
Industrial Manufacturing
Dairy Processing
Process and Utility Systems
HVAC & Cooling Systems
Energy & Utility Systems
Architectural Applications
Compressed Air Systems
Cooling Water Systems
High-Purity Water Systems
Construction & Materials
Material: 304/304L and 316/316L stainless steel
End Connection: Weld end, tri-clamp
Surface Finish: Mill finish, polished ID/OD
Outside Diameter Size: 1/2 to 12 inch
Wall Thicknesses: Schedule 10
Specification: ASTM A269/A270, 3-A, ASME BPE
Performance Specifications
Maximum Operating Temperature: Up to 1,700°F (925°C), depending on configuration
Tensile Strength: Up to 70ksi (485 MPa), depending on configuration
Yield Strength: Up to 25 ksi (170 MPa), depending on configuration
Dimensional Tolerance: Depends on configuration
Quality & Compliance
Stainless Steel Schedule 10 fittings are manufactured using certified 304/304L and 316/316L stainless steel to applicable ASTM and ASME material and dimensional requirements, including ASME B36.19M. Material traceability, dimensional inspection, mechanical testing, weld inspection, and certification documentation can be provided to support quality assurance, project specifications, and industry-specific requirements.
