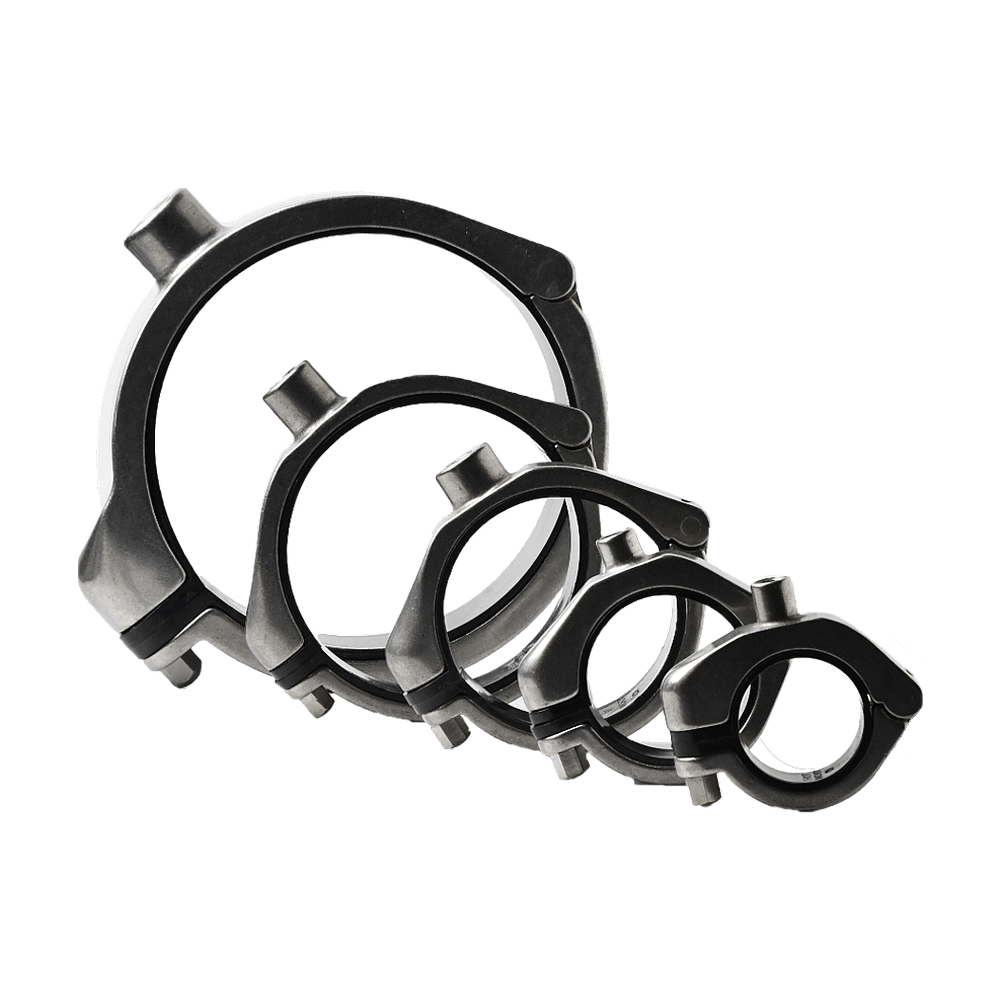

Stainless Steel Hangers
Stainless steel hangers are compact hygienic support systems designed to securely support, guide, and anchor pipe and tubing in sanitary and industrial process installations. Both designs use stainless steel construction with engineered polymer inserts, while their mounting arrangements provide different installation options for fixed and adjustable support applications.
These hangers are well suited for food and beverage, dairy, pharmaceutical, biotechnology, chemical, water, and other process systems where hygienic construction, corrosion resistance, thermal movement, and reliable pipe alignment are important. They are designed around sanitary piping requirements, with smooth geometry and configurations intended to accommodate thermal expansion and maintain appropriate pipe pitch.
Key Benefits
Engineered PESU Inserts — Polyethersulfone inserts provide a durable interface between the hanger and pipe while helping isolate the process tubing from the support.
Compact Design — The streamlined hanger construction provides effective pipe support without adding unnecessary bulk to the piping system.
Durable in Process Environments — Stainless steel construction and high-performance polymer inserts provide dependable service in demanding applications.
Reduced Metal-to-Metal Contact — Polymer inserts help protect the outside surface of stainless steel tubing and reduce direct contact with the hanger body.
Reduced Vibration — Rigid support configurations can help minimize unwanted pipe movement and vibration, particularly on vertical runs
Adjustable Installation — Compatible support components can provide elevation adjustment to help maintain required pipe height, alignment, and slope.
Easy System Integration — Can be incorporated with threaded rods, stanchions, support structures, and other sanitary piping support components.
Typical Applications
Process Piping Systems
Sanitary Process Piping
Water & Chilled Water Systems
Heat Exchanger Systems
Cooling Tower Systems
Water Treatment Systems
Food & Beverage Processing
Pharmaceutical & Biotechnology Systems
Chemical Processing
HVAC & Refrigeration Systems
Industrial Manufacturing & Utility Systems
Construction & Materials
Insert Material: Polyethersulfone (black or grey)
Hanger Material: 304 or 316L stainless steel
Mounting Style: Threaded, solid rod, base plate, adjustable
Rod Lengths: Standard 6 inch, custom from 4 to 96 inch
Pipe Securement: Anchored or guided
Sizes: 1/4 to 6 inch, tube sized, SCH pipe sized, copper pipe sized
Performance Specifications
Maximum Working Temperature: Up to 320°F (160°C), depending on configuration
Load Capacity: Approximately 100–1,000+ lb per hanger, depending on configuration
Quality & Compliance
CHT and CHR hangers are manufactured with corrosion-resistant stainless steel components, engineered PESU inserts, and controlled surface finishes to provide consistent fit, durability, and reliable support in sanitary and industrial piping environments. Designed for hygienic process applications, applicable configurations can conform to ASME BPE requirements and project-specific sanitary specifications, with material, dimensional, and finish documentation available where required.
