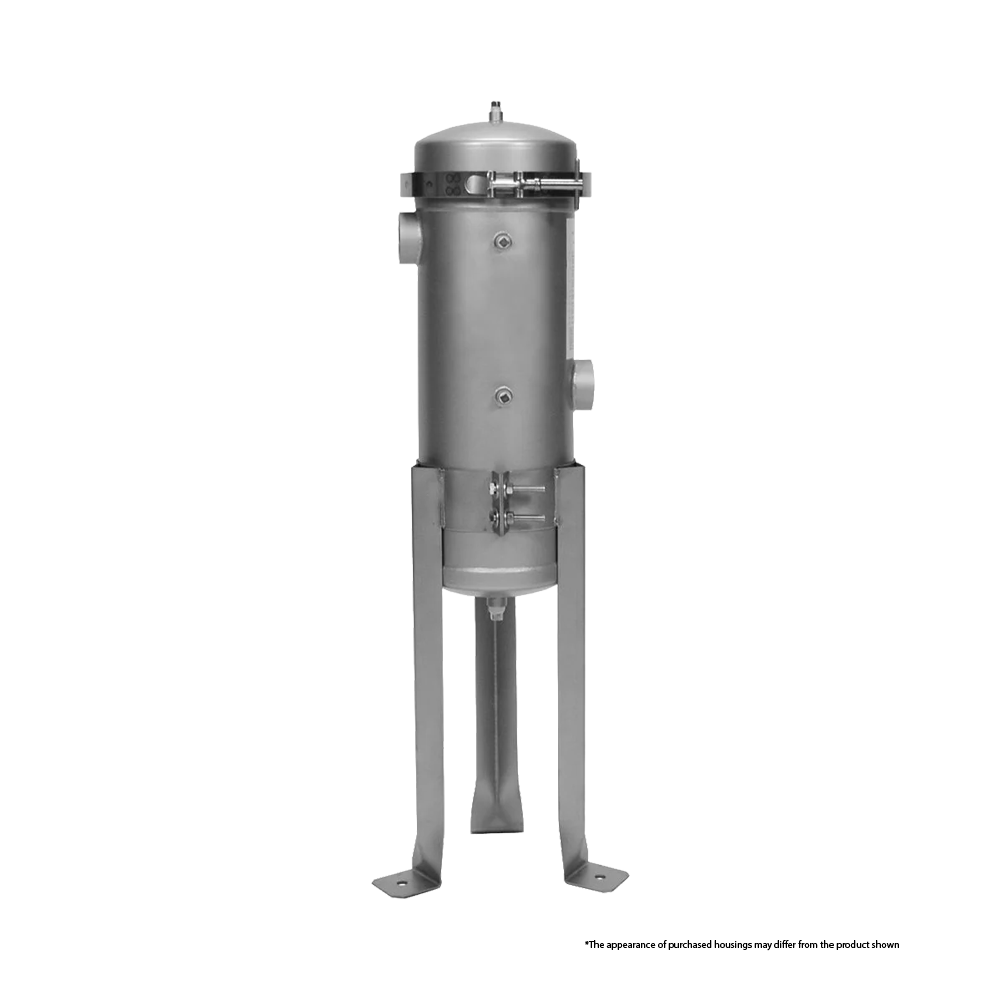

Single Bag Filter Housings
Single bag filter housings provide a practical and economical method of removing suspended solids, dirt, scale, rust, and other particulate contaminants from liquid process streams. The housing holds a single replaceable filter bag, allowing contaminated bags to be removed and replaced quickly when the element reaches its loading capacity, or the system reaches its specified differential pressure.
Particularly useful where filtration is required but continuous flow during bag replacement is not essential. Where uninterrupted filtration is required, multiple housings can be installed in parallel, or a duplex arrangement can be specified.
Key Benefits
Simple Filtration — Provides reliable removal of suspended solids and contaminants using a single replaceable filter bag.
Quick Changeouts — Removable covers provide convenient access to the filter bag, simplifying routine inspection, replacement, and maintenance procedures.
Cost-Effective Operation — Single-bag configurations offer an economical filtration solution while minimizing replacement and maintenance costs.
Compact Footprint — The single-element design requires less floor space and provides a practical solution for installations with limited available space.
High Flow Capability — Larger #1 and #2 bag configurations accommodate higher flow rates and greater holding capacity than smaller #3 and #4 arrangements.
Replaceable Filtration Media — Individual filter bags can be removed and replaced without replacing the housing, reducing operating costs and supporting flexible filtration performance.
Typical Applications
Cooling water filtration
Chilled water systems
Condenser water systems
Process water
Industrial water treatment
Raw water filtration
Wastewater treatment
Boiler feedwater
Lubricating oil
Fuel filtration
Chemical processing
Petrochemical processing
Paints and coatings
Food and beverage processing
Pharmaceutical processing
Construction & Materials
Housing Materials: 304L and 316/L stainless steel options
Basket Material: Stainless steel perforated support basket
Basket Perforation: Multiple perforation and mesh configurations available
Closure Options: V-clamp, band clamp, or swing-bolt configurations
Connection Options: FNPT, ANSI flanged, and sanitary ferrule connections
Gasket Options: Buna-N, EPR/EPDM, Silicone, and Viton/FKM
Available Sizes: #1, #2, #3, and #4 configurations
Filtration Media: Polypropylene, polyester, nylon, felt, mesh, and other options
Mounting: Adjustable mounting legs available on applicable configurations
Performance Specifications
Design Pressure: Up to 150 psi (10 bar), dependent on configuration
Temperature Range: Up to 250°F (120°C), dependent on configuration
Flow Capacity: Up to 176 GPM (6–40 m³/h), dependent on configuration
Quality & Compliance
Manufactured using established industrial materials and controlled fabrication practices, with stainless-steel configurations available in 304L, 316L, 316, and 316 Ti depending on the housing series and application. Dimensional, material, pressure, and connection specifications are controlled according to the selected configuration, with applicable products carrying ISO 9001 certification, while dedicated ASME Code housing options are available where code-stamped construction is required.
