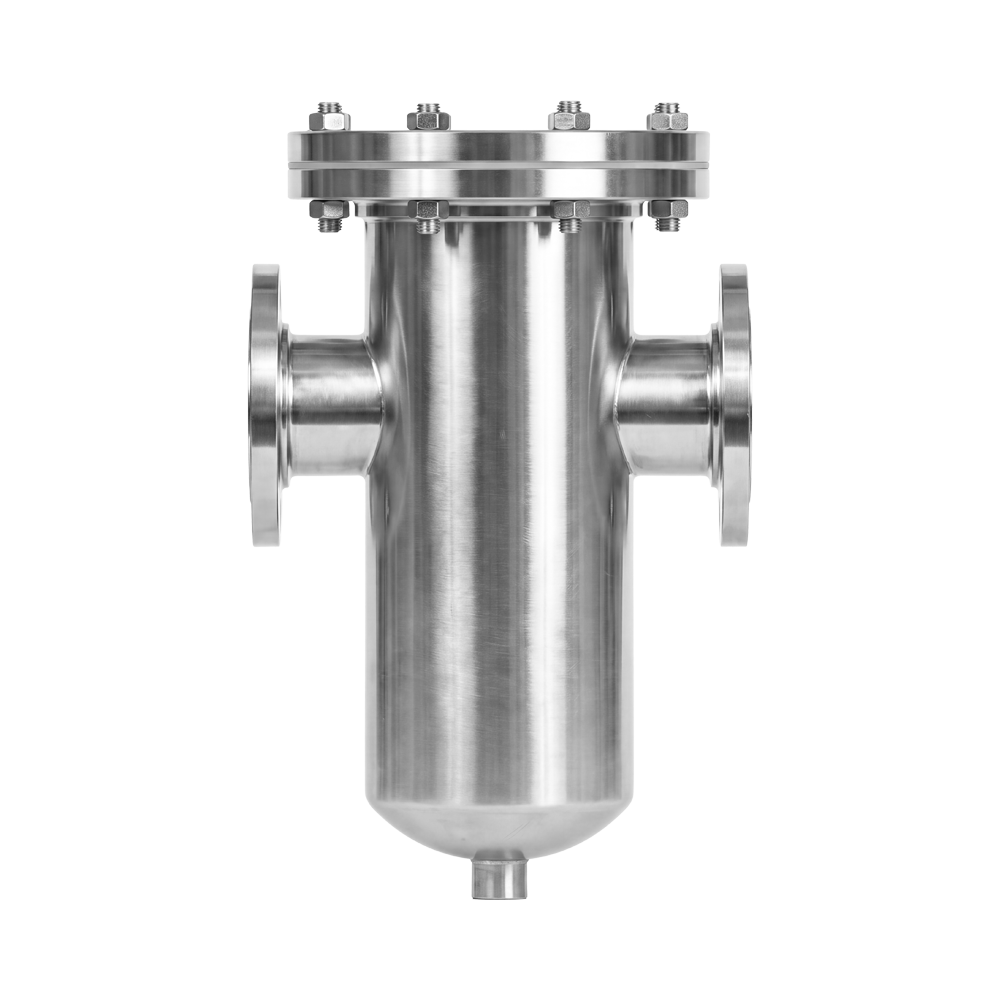

Simplex Strainers
Simplex basket strainers provide an effective method for removing dirt, debris, and suspended solids from fluid systems while protecting pumps, valves, meters, heat exchangers, nozzles, and other downstream equipment. Cast-body construction, removable baskets, and multiple filtration options make them suitable for a broad range of industrial fluid-handling applications.
These strainers are designed for applications where the fluid flow can be temporarily interrupted to allow safe access to the filtration basket. During scheduled maintenance, the basket can be removed for cleaning, inspection, or replacement before being reinstalled and returned to service.
Key Benefits
Durable Strainer Housing: Robust cast-body construction provides reliable mechanical strength and long-term durability in demanding fluid-handling applications.
High Pressure Capability: Heavy-duty housing configurations support higher operating pressures for demanding industrial systems.
Compact Design: Simplex housing construction provides an efficient filtration solution where installation space is limited.
Flow Optimization: Internal housing geometry is designed to direct fluid efficiently through the basket while minimizing unnecessary flow restriction.
Easy Basket Access: Removable covers provide access to the internal basket for routine cleaning, inspection, and replacement.
Reliable Sealing: Robust cover and gasket arrangements help maintain a secure seal and minimize fluid leakage during operation.
Typical Applications
Pump protection
Heat exchanger protection
Process water
Chilled water systems
Cooling tower systems
Condenser water systems
Boiler feedwater systems
Closed-loop water systems
Industrial water treatment
Raw water filtration
Seawater cooling systems
Wastewater treatment
Chemical processing
Oil and gas systems
Power generation
Pipeline protection
Valve and meter protection
Construction & Materials
Housing Material: 316 stainless steel
Basket Type: Perforated plate or woven mesh-lined
Basket Material: 316 stainless steel
Perforation Options: 1/32 to 3/4 inch
Mesh Options: 20 to 400 mesh
Closure Options: Hand-clamp, yoke, and bolted configurations
Seal Options: Buna-N, EPDM, PTFE, and Viton® (FKM)
Available Sizes: 3/8 to 8 inches
Connection Options: NPT threaded and flanged configurations
Performance Specifications
Maximum Operating Pressure: Up to 200 psig, depending on configuration
Maximum Operating Temperature: Up to 500°F (260°C), depending on configuration
Maximum Operating Differential Pressure: Up to 50 psi (3.4 bar), depending on configuration
Flow Capacity: Dependent on housing size, basket open area, fluid properties, and system conditions
Recommended Cleaning Differential Pressure: 5–10 psi ΔP, depending on configuration
Open Area: Approximately 20–60%, depending on basket perforation or mesh configuration
Quality & Compliance
All simplex strainer housings are manufactured using controlled casting, machining, and assembly processes, with applicable materials and pressure-containing components selected to meet recognized industry requirements, including ASME B16.5 for applicable steel and stainless-steel flanged configurations. Body materials may be manufactured to applicable ASTM material standards, with dimensional inspection, pressure testing, material traceability, and quality documentation available for applicable configurations.
