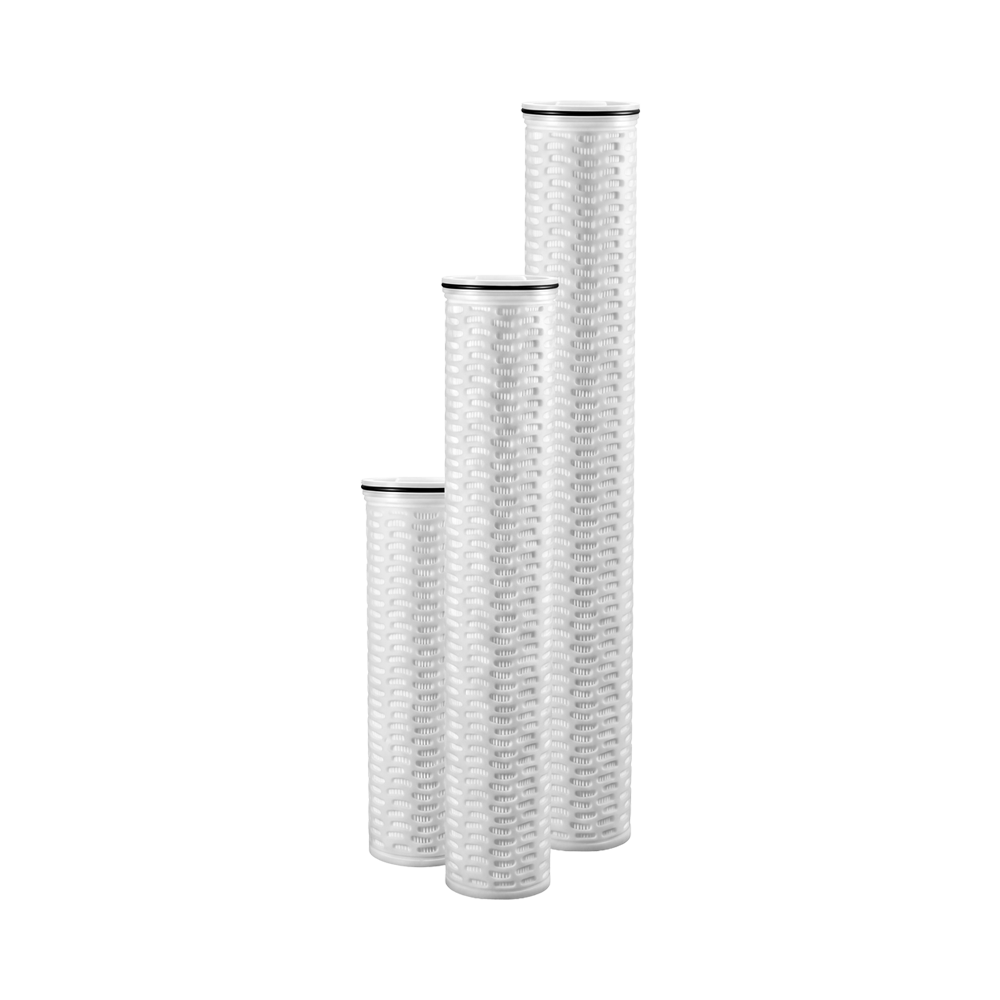

High Flow Filter Cartridges
High-capacity pleated filter cartridges developed for demanding liquid filtration applications where strong particle retention, extended operating life, and efficient cartridge replacement are important. Its large 6-inch (152 mm) diameter and depth-filtration construction provide substantial contaminant-holding capacity while allowing a single cartridge to handle filtration duties that may otherwise require several conventional 10-inch cartridges.
These cartridges utilize a single-open-end configuration with an inside-to-outside flow path. A multilayer pleated structure increases the available filtration area, supporting efficient particulate removal and helping maintain service performance over longer operating periods.
Key Benefits
High Dirt-Holding Capacity — Depth-oriented filtration media captures suspended contaminants throughout the filter structure, helping extend cartridge life.
Large Filtration Area — The oversized pleated design provides greater media surface area than conventional cartridges of comparable efficiency.
Flexible Particle Removal — Available filtration grades cover approximately 0.5 to 100 microns, with economic, nominal, and absolute configurations.
Broad Chemical Compatibility — Polypropylene construction makes these cartridges suitable for filtration of a wide range of process fluids.
Reduced Cartridge Consumption — The high-capacity format can replace multiple standard 10-inch cartridges in suitable applications.
Simplified Maintenance — The large-format cartridge design can reduce the frequency of filter changes and make replacement operations more efficient.
Extended Service Intervals — Multilayer depth media is designed to accommodate a substantial contaminant load before replacement is required.
Typical Applications
Groundwater treatment
Cooling tower water treatment
Fine chemical filtration
Reverse osmosis pre-filtration
Well injection treatment
Bottled water production
Reclaimed water treatment
Chilled loop filtration
Seawater desalination
Manufacturing process filtration
Ultrafiltration pretreatment
Industrial water treatment
Process water treatment
Power plant water treatment
Construction & Materials
Filter Media: Polypropylene
Cage, Core and End Cap: Polypropylene
Seal Options: EPDM, E-FKM, FKM and Silicone
Configuration: Single open-ended
Flow Direction: Inside to outside
Outside Diameter: 152 mm (6 inches)
Available Lengths: 20, 40, 60 and 80 inches
Performance Specifications
Particle Ratings: 0.5–100 μm
Maximum Operating Temperature: 176°F (80°C)
Maximum Operating Differential Pressure: 60 psi (4 bar) at 70°F (21°C)
High Temperature Differential Pressure: 35 psi (2.4 bar) at 176°F (80°C)
Recommended Change-Out Differential Pressure: 30psi ΔDifferential
Quality & Compliance
All cartridges are produced in a controlled clean-room environment under an ISO 9001:2015-certified quality management system. Materials used in construction are also stated to comply with applicable FDA requirements for food and beverage contact under 21 CFR, as well as the requirements of European Commission Regulation (EU) 10/2011.
