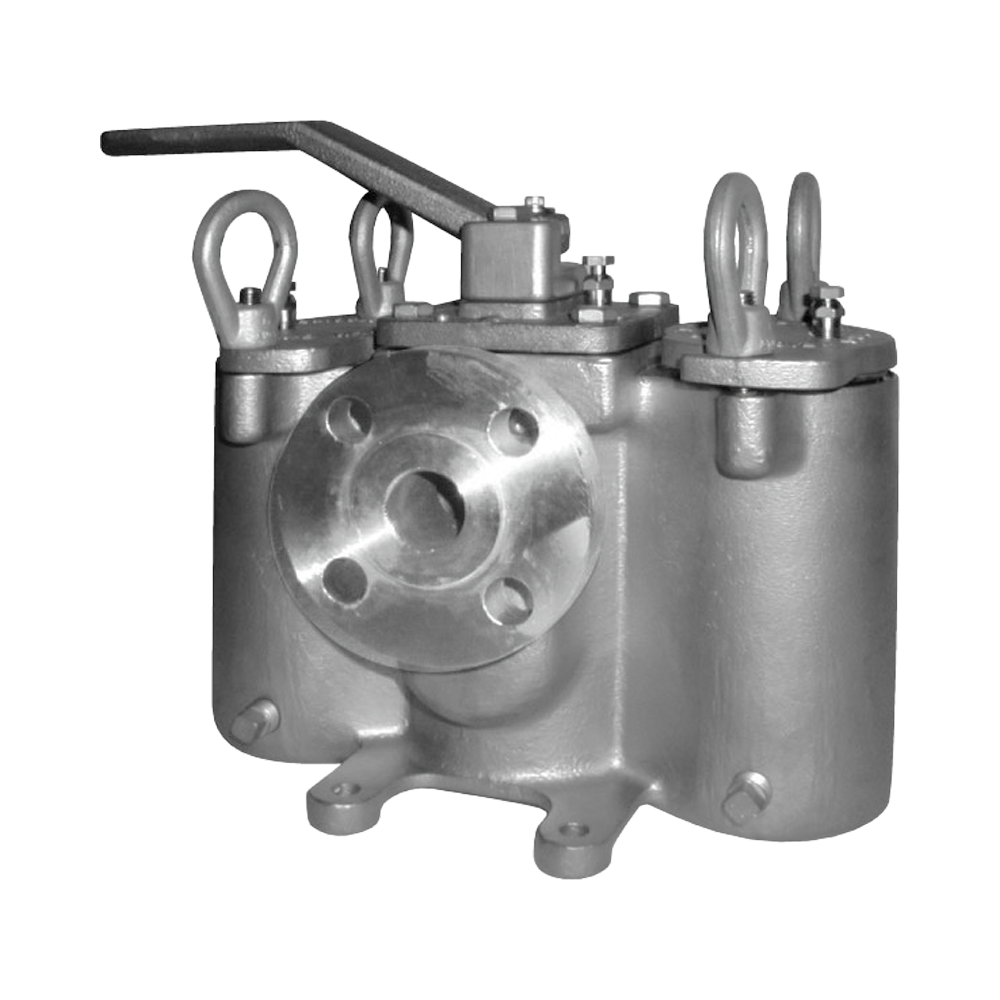

Eaton 53BTX Duplex Strainers
A duplex basket strainer is a heavy-duty filtration device designed to remove unwanted solid particles from liquid process streams while allowing the system to remain in operation during routine basket maintenance. Its two-basket configuration allows one filtration chamber to remain in service while the second basket is isolated, removed, cleaned, and returned to service.
The design is particularly well suited to systems where flow cannot be interrupted for routine basket maintenance, including cooling-water systems, heat exchangers, wastewater systems, boiler feedwater, lubrication systems, and other continuous-flow applications.
Key Benefits
Low-Profile Size: Can fit into spaces typical strainers will not, all while utilizing full-size strainer baskets with a low pressure drop performance.
Dual-Basket Design: Two independent filtration chambers provide operational flexibility and allow maintenance to be performed without shutting down the system.
Continuous Operation: Allows one filtration basket to remain in service while the second basket is isolated and cleaned, minimizing process interruptions.
Simple Flow Switching: The manually operated diverter handle provides straightforward control when transferring flow from a loaded basket to a clean basket.
Positive Chamber Isolation: The diverter and sealing arrangement helps isolate the inactive filtration chamber during basket servicing.
Easy Basket Maintenance: The accessible basket covers allow filtration elements to be removed, cleaned, inspected, and returned to service with minimal effort.
Typical Applications
Pump protection
Heat exchanger protection
Process water
Chilled water systems
Cooling tower systems
Condenser water systems
Boiler feedwater systems
Closed-loop water systems
Industrial water treatment
Raw water filtration
Service water systems
Irrigation water systems
Seawater cooling systems
Construction & Materials
Housing Material: 304 or 316/316L stainless steel
Basket Type: Perforated or woven mesh
Basket Material: Stainless steel with optional specialty materials
Perforation Options: 1/32 to 1/2 inch
Mesh Options: 20 to 400 mesh
Seal Options: TFE/Buna-N and TFE/Viton
Available Sizes: 3/4 to 4 inches
Connection Options: Threaded and flanged configurations
Performance Specifications
Design pressure: 200 psi (13.8 bar), depending on configuration
Flow capacity: Cv ranges from 13 to 175, depending on strainer size and configuration
Temperature Range: 150°F (65°C), dependent on housing, basket and seal materials
Quality & Compliance
Manufactured using industry-standard cast housing and filtration materials, including cast iron, carbon steel, stainless steel, bronze, and stainless steel basket media, with applicable material specifications such as ASTM A351 for stainless steel. Dimensional and construction requirements are controlled to published specifications, with available configurations incorporating ANSI Class 125/150 or DIN flanged connections, and threaded connections; applicable certifications, including ABS Type Approval and project-specific material documentation, are available where required.
