Block Style Hangers

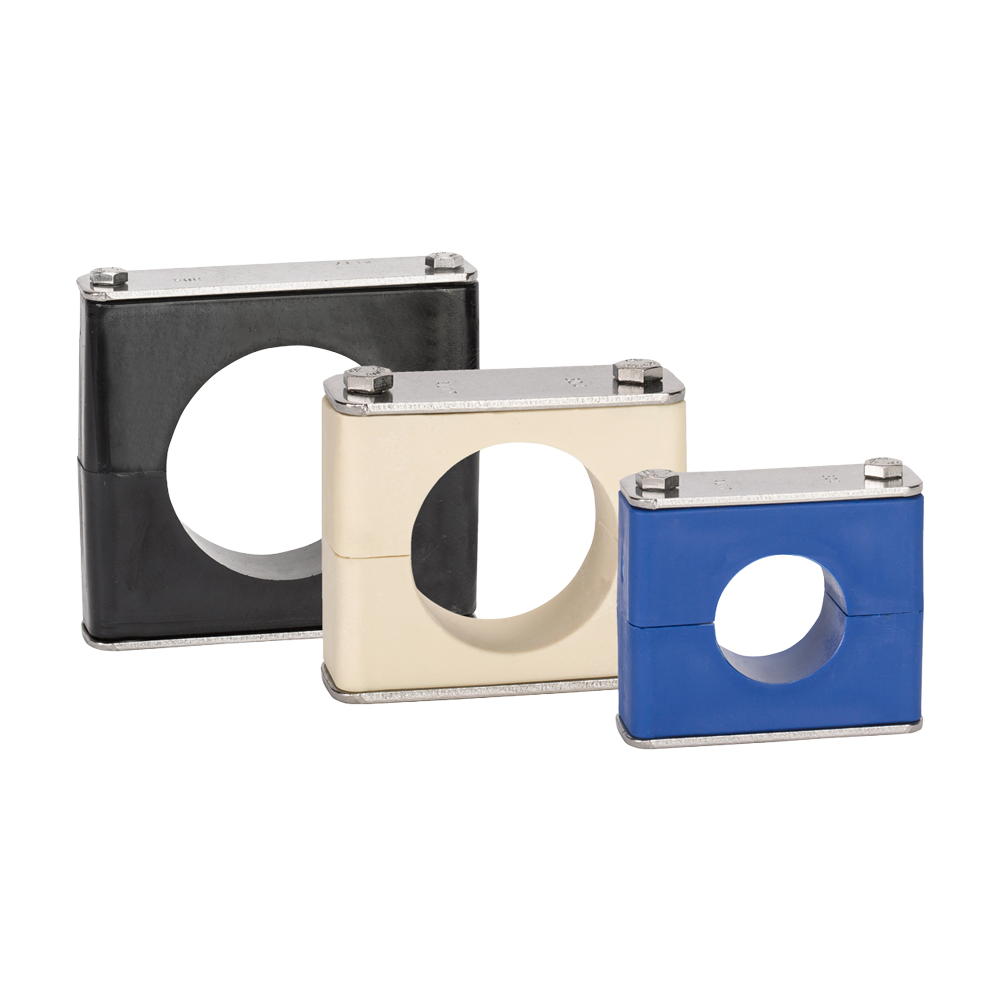

Block style hangers provide a versatile method for supporting, guiding, and anchoring pipe and tubing in industrial and sanitary piping systems. Their modular construction uses two clamp halves around the pipe or tube, allowing the assembly to be configured as either a fixed anchor or a guide that accommodates axial movement caused by thermal expansion.

These hanger systems are suitable for applications ranging from sanitary process piping and utility systems to industrial pipe, tube, cable, and hose installations.

Key Benefits

  • Reliable Pipe and Tube Support — Provides secure, consistent support for sanitary tubing, process piping, utility lines, and industrial piping systems while helping maintain proper alignment throughout the installation.

  • Anchor or Guide Functionality — Available in configurations that can either firmly anchor piping in place or guide the pipe while allowing controlled axial movement.

  • Accommodates Thermal Expansion — Guide configurations allow piping to expand and contract longitudinally as temperatures change, helping reduce stress on piping, fittings, equipment connections, and support structures.

  • Smooth Bore Design — Smooth internal contact surfaces provide continuous support around the outside diameter of the pipe or tube while minimizing crevices and areas where contaminants can accumulate.

  • Adjustable Installation — Threaded-rod and similar mounting configurations allow installers to adjust elevation, alignment, and piping slope as required.

  • Consistent Pipe Alignment — Helps maintain the intended position of piping throughout long runs and around equipment connections.

  • Reduced Installation Complexity — Modular components allow support assemblies to be configured for different structural conditions and piping layouts.

Typical Applications

  • Process Piping Systems

  • Sanitary Process Piping

  • Water & Chilled Water Systems

  • Heat Exchanger Systems

  • Cooling Tower Systems

  • Water Treatment Systems

  • Food & Beverage Processing

  • Pharmaceutical & Biotechnology Systems

  • Chemical Processing

  • HVAC & Refrigeration Systems

  • Industrial Manufacturing & Utility Systems

Construction & Materials

  • Insert Material: Polypropylene, Santoprene, polysulfone, HDPE, high-temperature nylon

  • Mounting Material: 304 or 316/316L stainless steel

  • Mounting Style: Weld plate, threaded hang plate, base plate, stacked hardware, rail and strut

  • Rod Options: Threaded, solid bar, adjusting

  • Pipe Securement: Anchored or guided

  • Sizes: 1/4 to 6 inch, tube sized, SCH pipe sized, copper pipe sized

Performance Specifications

  • Maximum Working Temperature: Up to 300°F (149°C), depending on configuration

  • Load Capacity: Approximately 100–1000+ lb per hanger, depending on configuration

Quality & Compliance

Block style hangers are manufactured using engineered polymer inserts, corrosion-resistant hardware, and precision-formed components to provide consistent fit, reliable support, and long-term durability. Depending on configuration, materials and construction can be selected to meet applicable sanitary, ASTM, ASME, and project-specific requirements, with material and dimensional documentation available where required.
