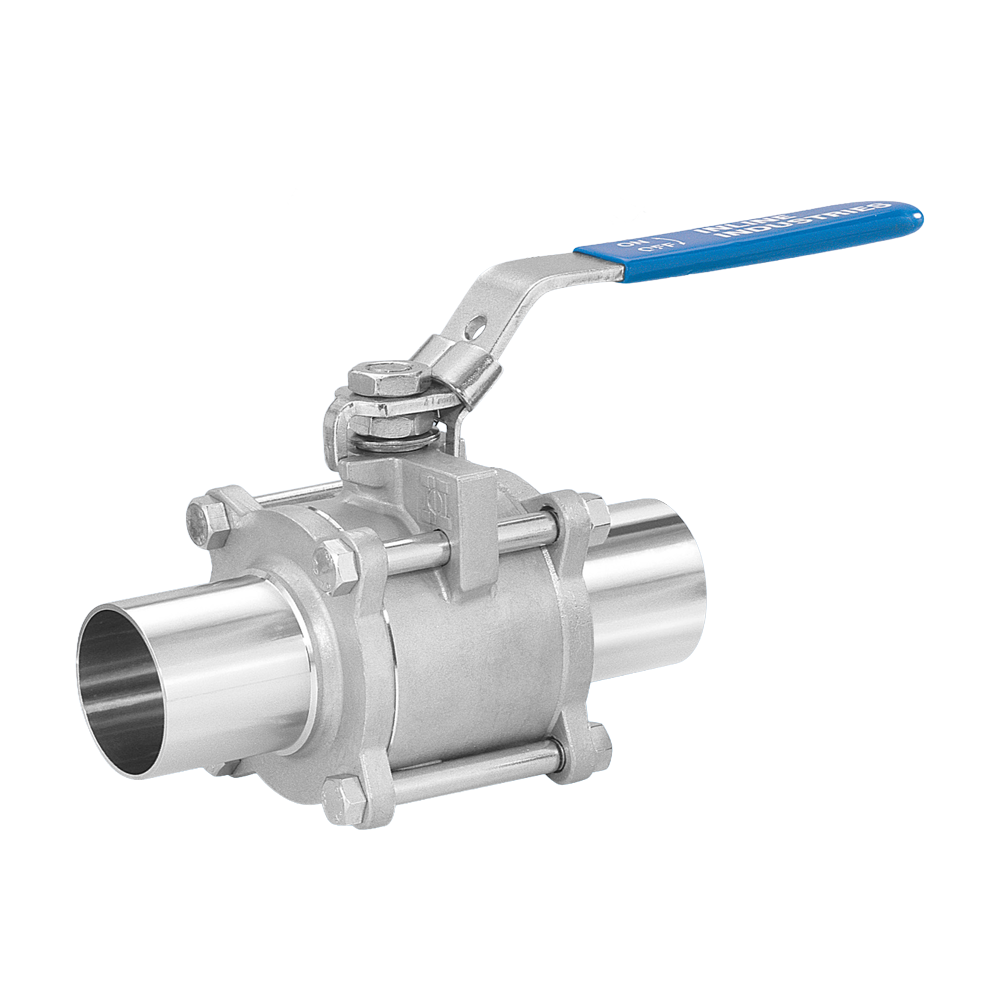

Ball Valves
Ball valves are engineered for reliable shutoff and flow control in hygienic and high-purity piping systems. Designed with corrosion-resistant stainless steel construction and smooth, cleanable internal surfaces, these valves are commonly used in food and beverage processing, dairy, pharmaceutical, biotechnology, cosmetics, and other applications where cleanliness, durability, and dependable operation are essential.
The compact design allows the valve to be installed within water cooling systems while providing straightforward on/off control. Depending on the valve design, configuration, and application, sanitary ball valves can be supplied with a variety of connection styles, materials, seals, handles, and actuation options.
Key Benefits
Reliable Shutoff — Precision-machined balls, stems, and valve seats provide consistent sealing and dependable isolation when properly selected for the application.
Quick Quarter-Turn Operation — A 90-degree rotation provides fast and straightforward opening and closing, making the valve well suited for frequent operation.
Efficient Flow Performance — Full-port configurations provide a relatively unobstructed flow path, helping minimize flow restriction and pressure loss.
Easy Cleaning and Maintenance — Sanitary designs and serviceable components can simplify inspection, cleaning, seal replacement, and routine maintenance.
Compact Installation — The streamlined design helps conserve space while providing convenient access for operation and maintenance.
Manual or Automated Operation — Valves can be configured with manual handles or pneumatic and electric actuators for applications requiring automated process control.
Flexible System Compatibility — Easily integrates into systems requiring manual and automated actuation, and compatible with pipe insulation by using handle extensions.
Typical Applications
Water Cooling Systems
Chilled Water Systems
Cooling Tower Systems
Heat Exchanger Systems
Process Water Systems
Recirculating Water Systems
Utility Water Systems
Cooling Skids
Pump Systems
Water Treatment Systems
CIP Water Systems
Equipment Isolation
Cooling Loops
Construction & Materials
Body Material: 304 and 316/316L stainless steel
Ball and Stem Material: 316L stainless steel
Seal and O-Ring Material: Buna-N, EPDM, PTFE and Viton
End Connections: Weld end, tri-clamp, NPT
Actuation: Manual handle, pneumatically actuated, electrically actuated
Size Range: ¼ to 6 inch
Surface Finish: 30RA ID, 20RA MP ID, 15RA EP ID
Performance Specifications
Maximum Working Pressure: Up to 150 psi, depending on configuration
Maximum Working Temperature: Up to 350°F (177°C), depending on configuration
Flow Capacity: Cv ranges 4 to 900+, depending on configuration
Port Configuration: Full-port or reduced-port
Quality & Compliance
Sanitary ball valves are manufactured using controlled 304/316L stainless steel materials, precision-machined components, and sanitary-grade seals to support consistent performance and hygienic service. Depending on configuration and application, valves can be supplied with material certifications, dimensional inspection, surface-finish verification, pressure testing, and documentation supporting applicable sanitary, ASTM, ASME, and industry requirements.
